Jeep Wrangler JK 1350 Axle Uni Joint Spicer Life Series

Jeep Wrangler JK 1350 Axle Uni Joint Spicer Life Series

$140.00

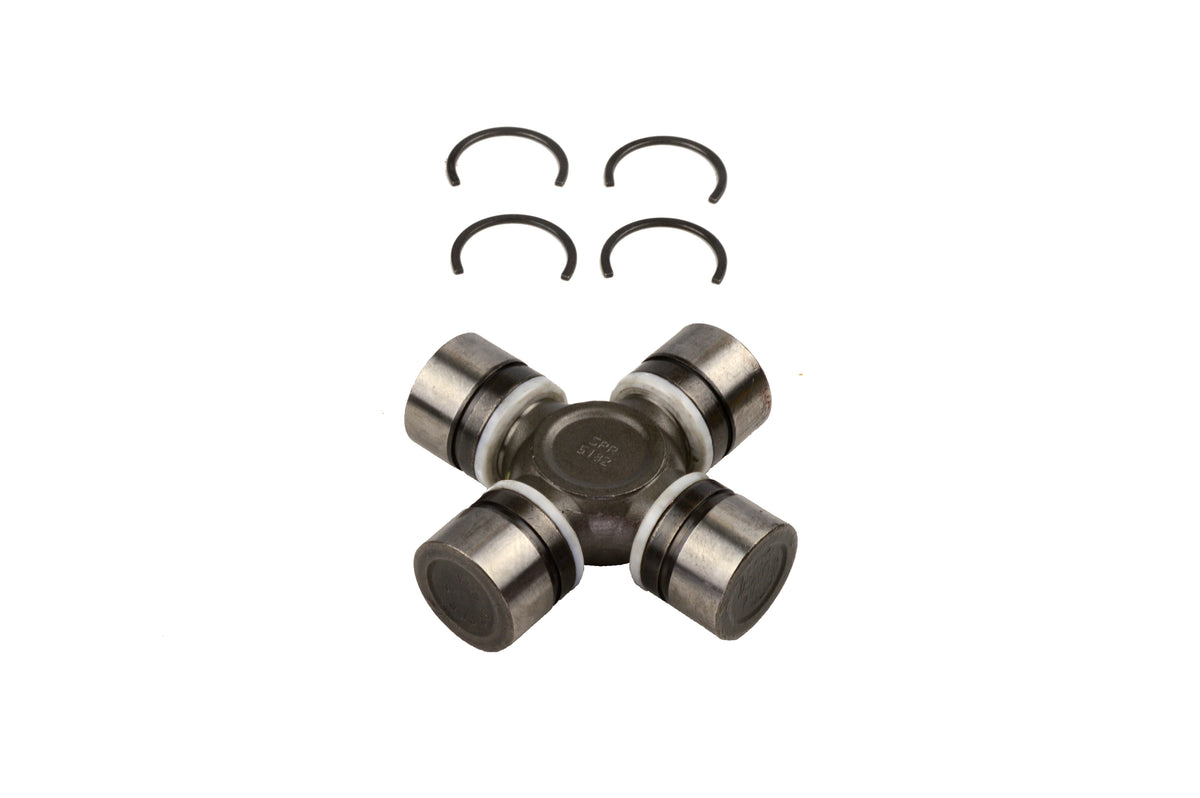

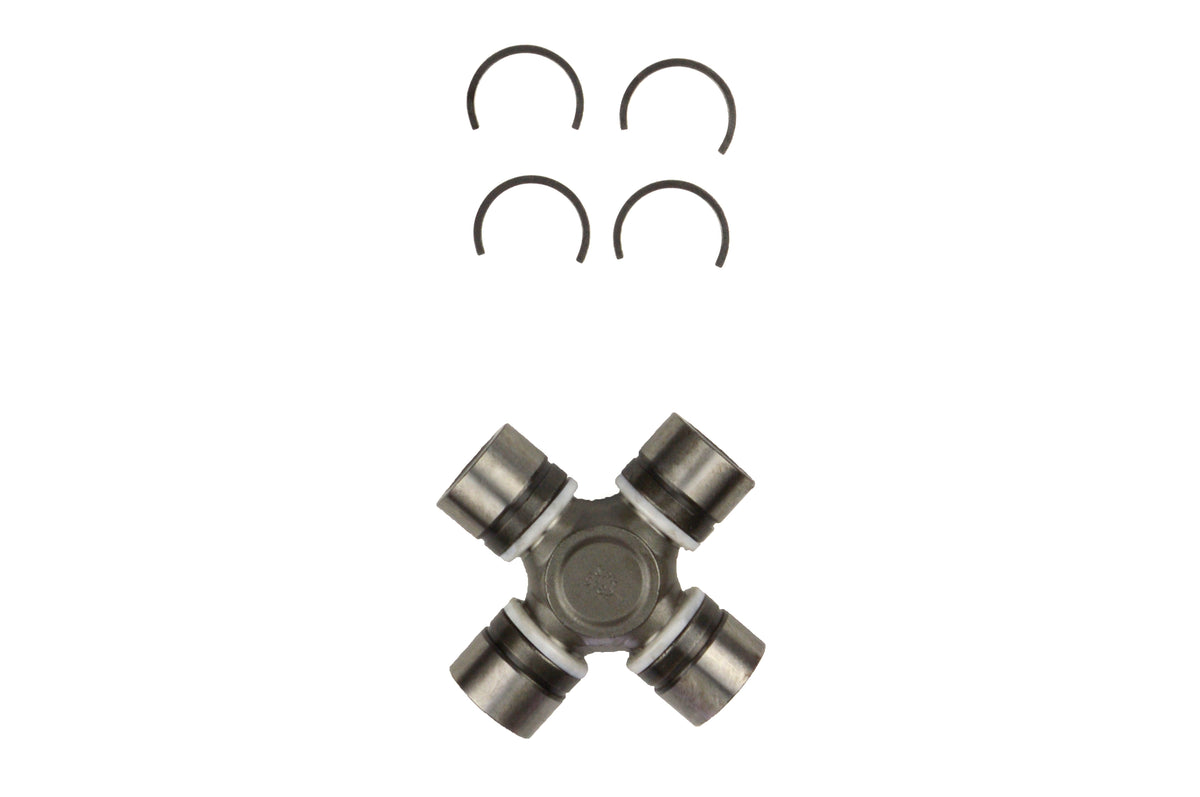

Axle Shaft Uni Joint for Front Axles with 13150 Uni.

Jeep Wrangler JK 2012-2017

Spicer Life Series (SPL); Non-Greasable
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Features:
Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.

BrandSPL
Box Dimensions4.10 x 4.40 x 1.50 IN
Country of OriginUSA
Tariff Code8483604080, 8708996810
UPC Code23913126384
Series1350 WJ
GreaseableNo
TypeISR Style
Length A (mm)61.100
Bearing Cap Diameter A (mm)30.175
Length B (mm)61.112
Bearing Cap Diameter B (mm)30.175
Drive Type4WD
Fitment NotesFront Axle at Wheels
Image PositionFig. I, Location 1
LocationFront Axle at Wheels
Gross Weight1.8 LB
Year2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
Bearing Cap Diameter (2)1.188
Bearing Cap Diameter (In)1.188
Bearing Cap TypeRound with ISR Groove
Bearing Cap Type AISR
Bearing Cap Type BISR
Distance Btw Snap Ring Grooves2.406
Distance Btw Snap Ring Grooves (ISR) (2)2.406
Grease Zerk IncludedNot Required
Hardware IncludedNo
Length (In)2.406
Length B (In)2.406
MaterialSteel
Mounting Hardware IncludedNo
OEM MfgSpicer
Pre GreasedYes
Snap Ring IncludedYes
Snap Ring TypeInternal
TypeU-Joint Kit
VMRS Code024002046
